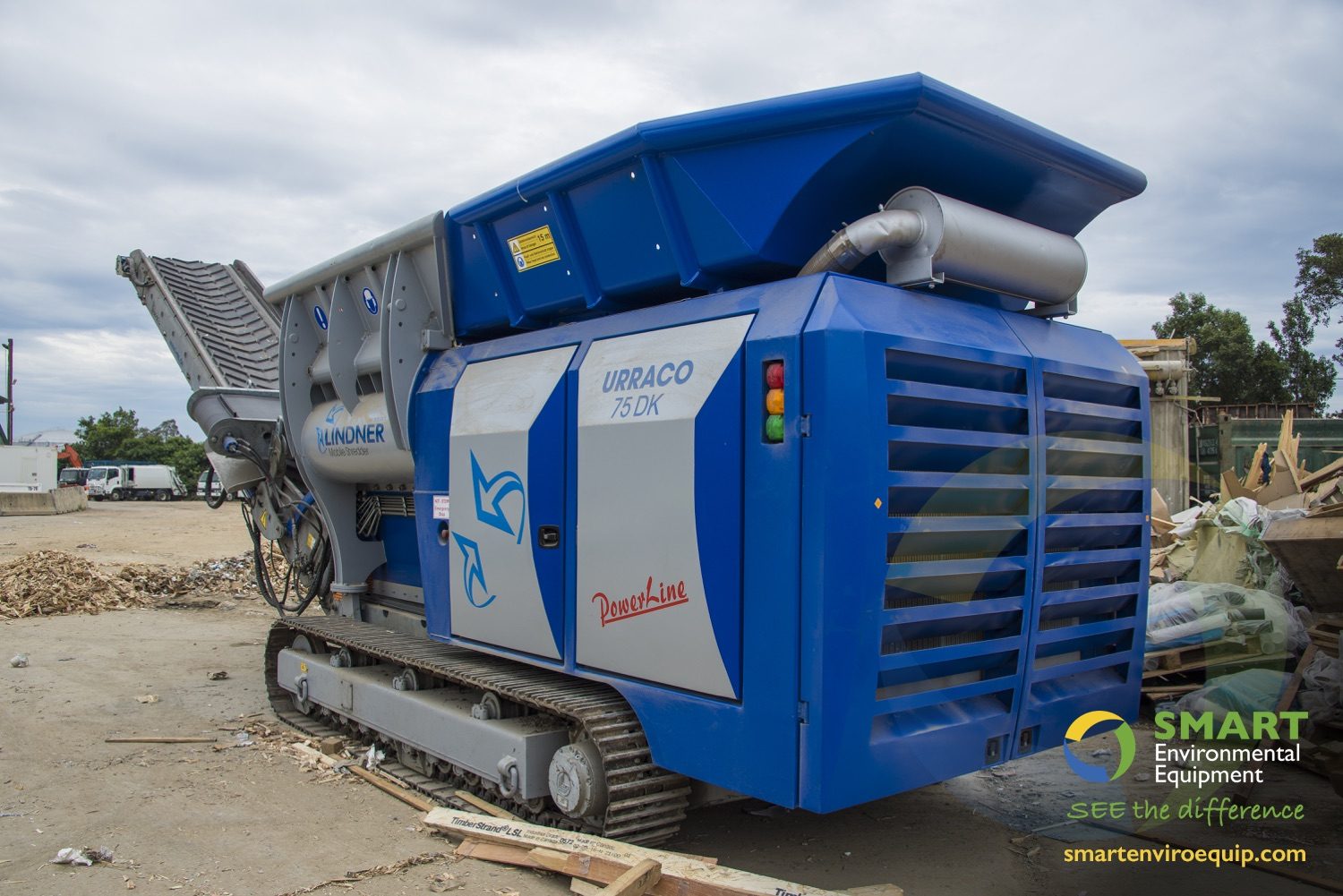

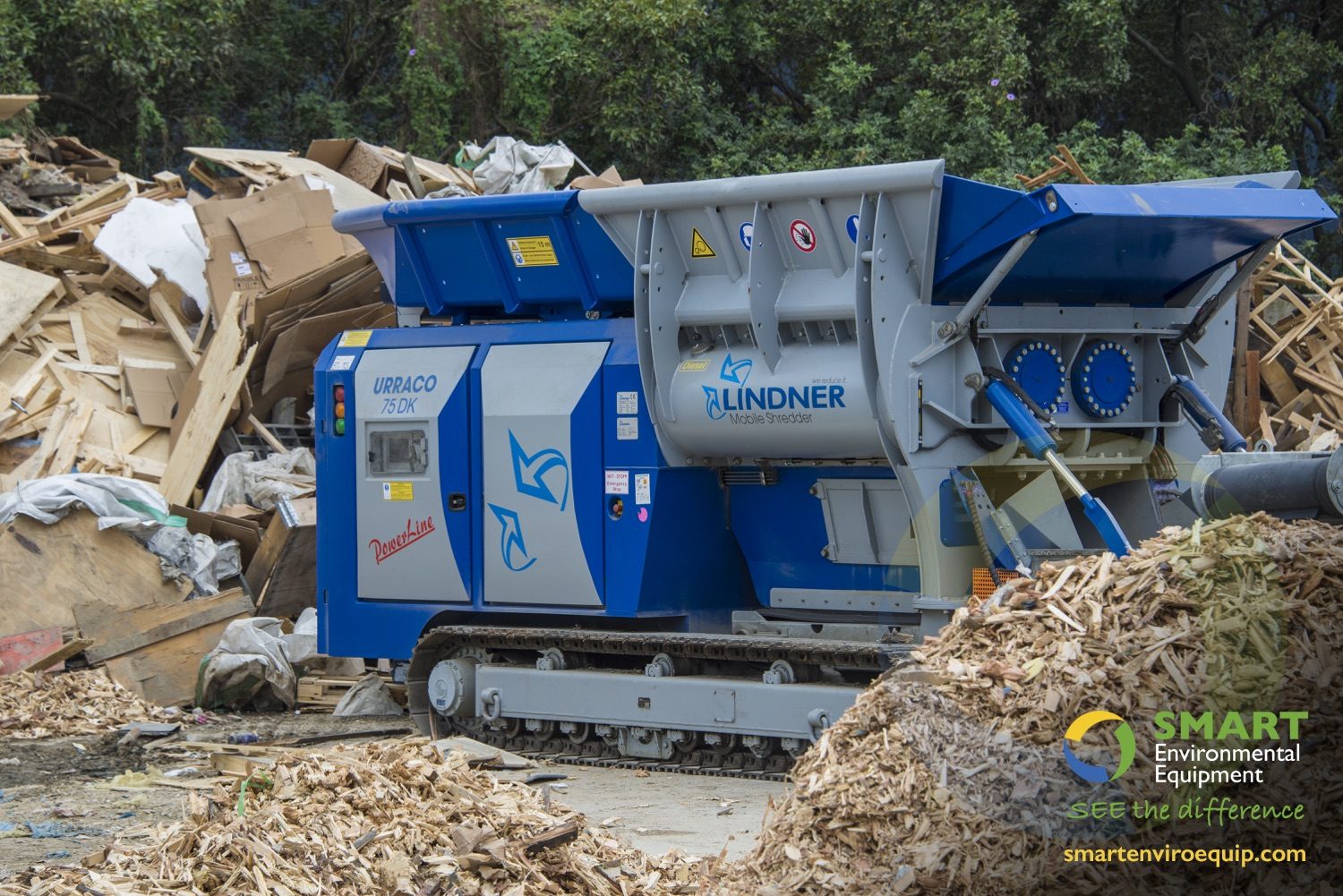

Lindner Urraco 75 DK

POWERFUL, COMPACT AND VERSATILE
Two-shaft slow-speed shredder for most materials

Flexible, powerful, economical. The Urraco 75 DK gives you all the advantages of mobile shredding while being extremely compact. This all-rounder shreds even difficult materials with its robust design and powerful engine. The machine is fitted with a heavy chain travelling gear for off-road mobility on site.

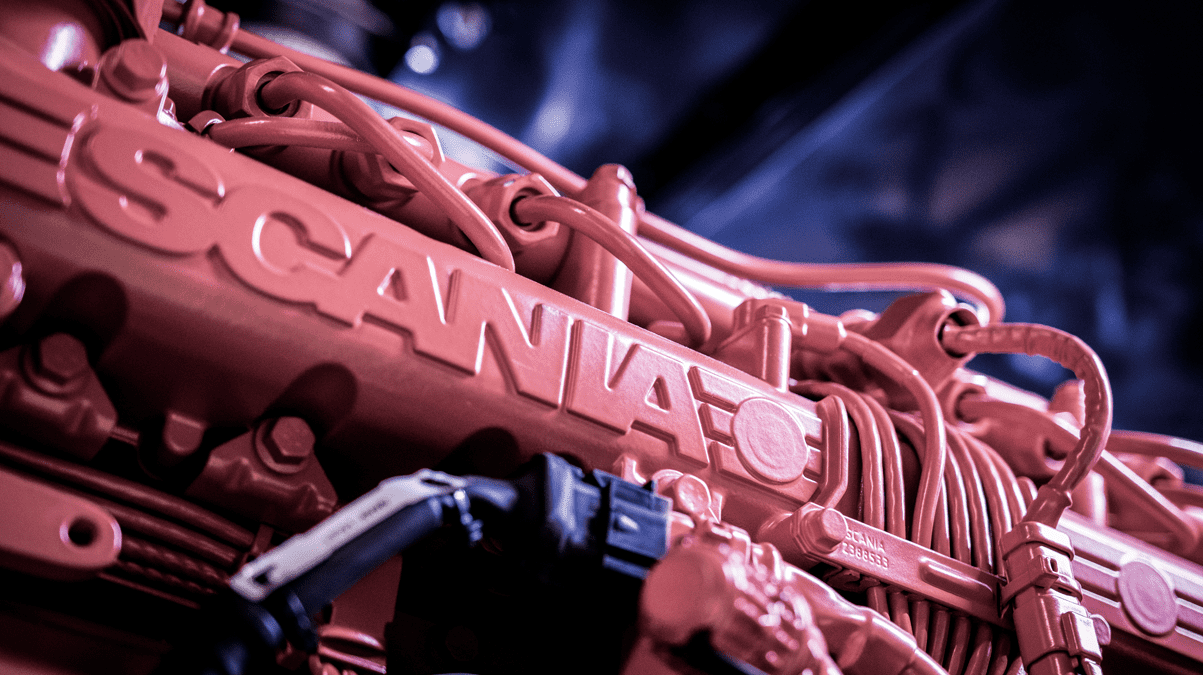

POWERFUL 257KW DIESEL ENGINE

The Urraco is powered by an environmentally friendly, state-of-the-art diesel engine from Scania with the lowest emission standards (EU Stage V / US Tier 4f / EU Stage IIIA). The 3-circuit cooling system working in unison with the engine and hydraulics ensures perfect air supply and cooling.

EFFICIENT SHREDDING with our 257 kW diesel engine from Scania
PARTICULARLY LONG SERVICE LIFE ensured by an ideal interaction between the engine and the hydraulics.
COMPLIES WITH ALL EXHAUST GAS REGULATIONS thanks to our state-of-the-art SCR system.

PROVEN MOBILE HYDRAULICS

The hydrostatic drive sports self-regulating hydraulics with a maximum torque of up to 240,000 Nm, crushing material powerfully with its two shafts.

HIGH THROUGHPUT thanks to the self-regulating hydrostatic drive.
SAFE OPERATION ensured by the instant detection of non-shreddables.
EFFECTIVE SHREDDING even of difficult materials with a torque of up to 240,000 Nm.

FEEDING TECHNOLOGY

Smart hopper tilting up to 80° on both sides for optimised and even material feeding. The machine can be operated simply from the wheel loader using the optional remote control.

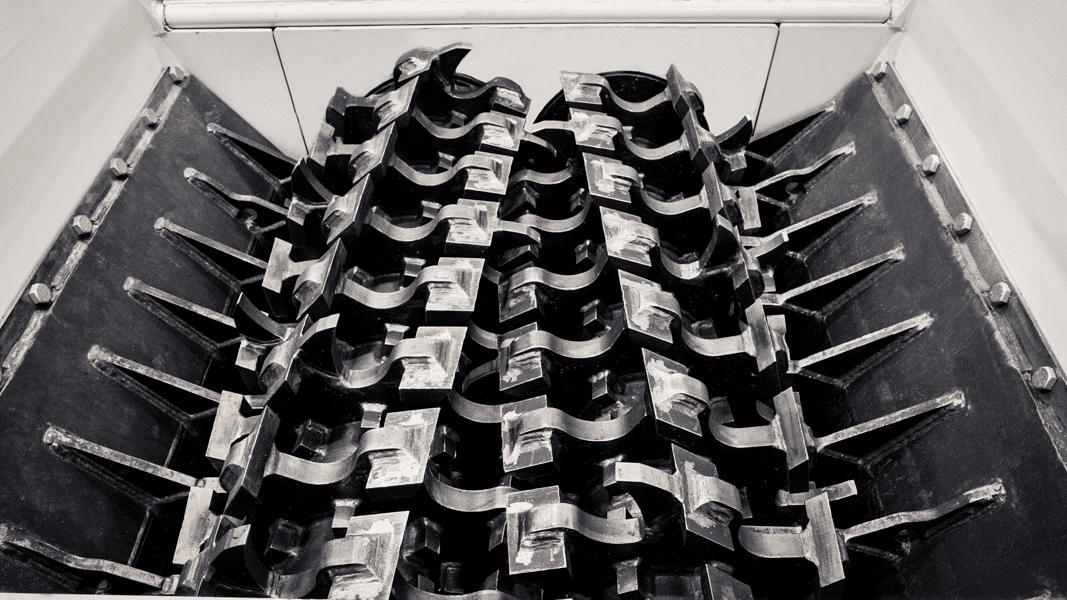

ROBUST TWIN-SHAFT CUTTING SYSTEM

The Urraco 75’s slow-speed twin-shaft cutting system ensures aggressive intake and guarantees highly efficient shredding. Depending on the shaft selected, even the toughest materials such as railway sleepers and light scrap metal can be processed safely and effectively.

INCREDIBLY PRODUCTIVE thanks to aggressive intake and synchronously running shafts.
ADAPTS PERFECTLY TO THE MATERIAL thanks to shaft pairs available in different designs.
MAXIMUM RESISTANCE with our fully welded crushers, rippers, scrapers and breaker bars.

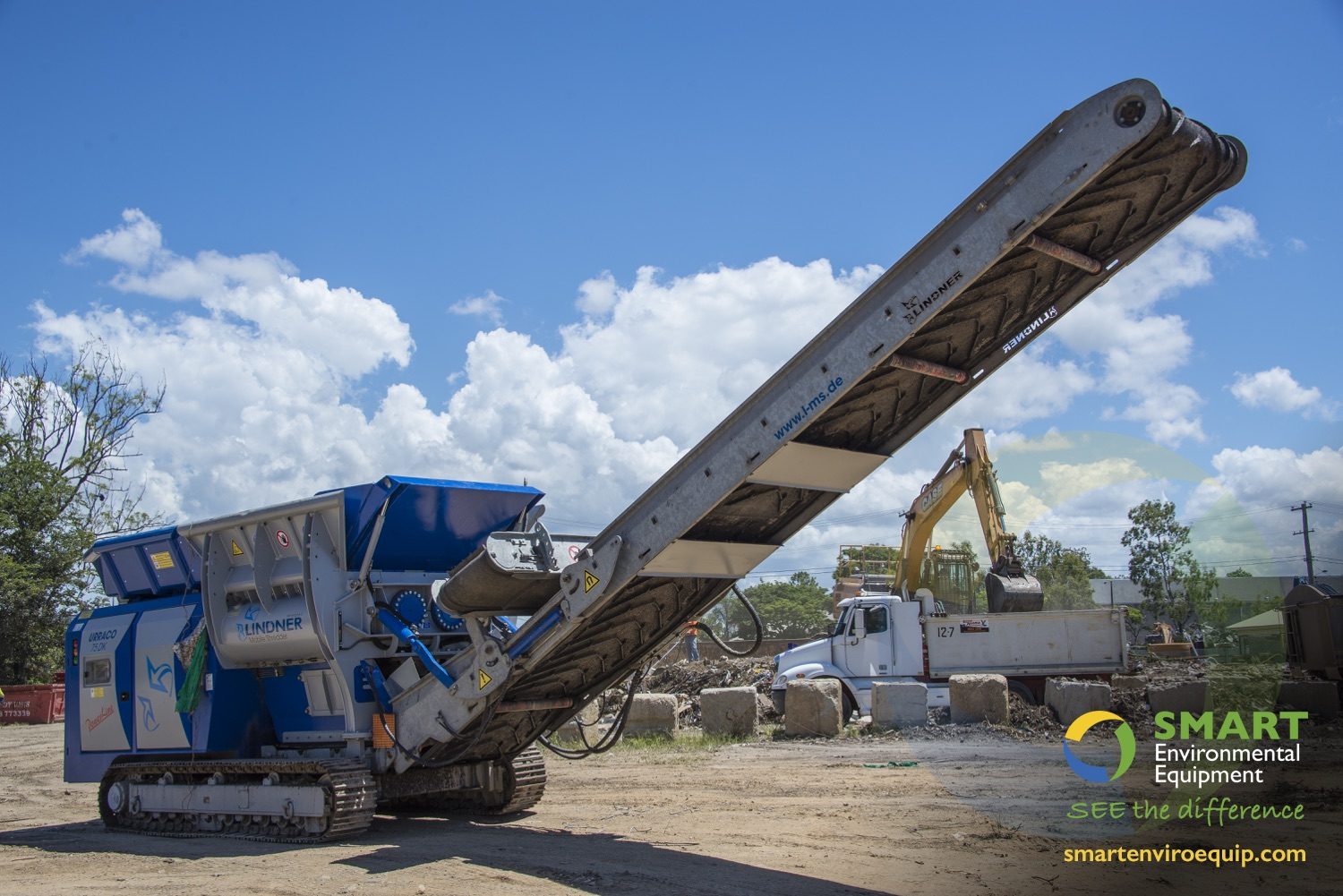

WELL-ENGINEERED FEED AND DISCHARGE SYSTEMS

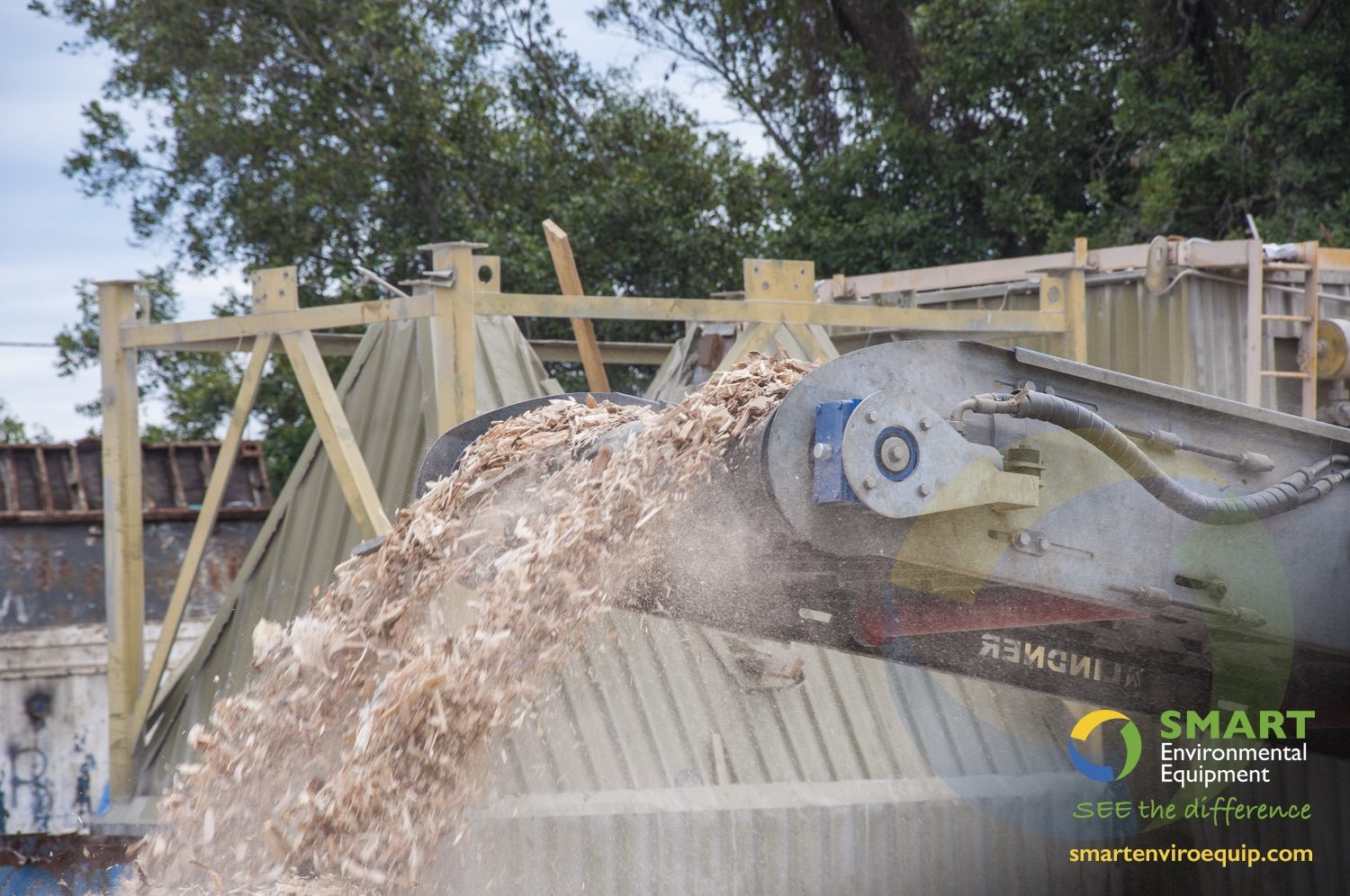

The integrated single belt discharge conveyor is powered hydraulically and might be completely folded away. The height of the conveyor belt can be easily adjusted during operation by simply lifting the belt from the wheel loader during shredding. For particularly heavy materials such as light scrap and tough commercial waste, the conveyor belt can be reinforced with steel.

CONSISTENT OUTPUT with our smart double tilting hopper system.
FERROUS METAL SEPARATION with optional integrated over-belt magnet.
LOW DUST EMISSIONS due to the hydraulic height-adjustable conveyor belt, which can even be adjusted during operation..

ROBUST TRACKED CHASSIS

The mobile Urraco 75 DK can be comfortably moved on-site with a two-hand joystick remote control. The integrated tracked system is thereby hydraulically powered by the machine and operates completely independently.

INDEPENDENT MANOEUVRING OF THE MACHINE thanks to hydraulic crawler tracks.
OPTIONAL RUBBER PADS available for gentle operation on tarmacked areas.
SECURE HOLD AND ANCHORING for maximum stability during operation.

EASY-TO-USE CONTROL

Sophisticated control technology with touchscreen display and remote control for safe operation, handling and control of the entire machine.

SIMPLE OPERATION AND PARAMETERSETTING thanks to the intuitive touchscreen user interface.
EASY MANOEUVRING OF THE SHREDDER using the joystick remote control.
CONVENIENT SHREDDER OPERATION FROM THE WHEEL LOADER with the customisable remote control..

Waste Types

Waste
Domestic waste, organic waste, FOGO, plastics, PVC.

Biomass
Green waste, rootstock, log wood, palms, animal manure, silo bales, grass cuttings.

Wood Waste
Demolition wood, pallets, chipboard, cable drums, railway sleepers.

Commercial Waste
Bulky waste, C&D waste, paper rolls, tar boards, mixed construction waste.

Metal and Scrap

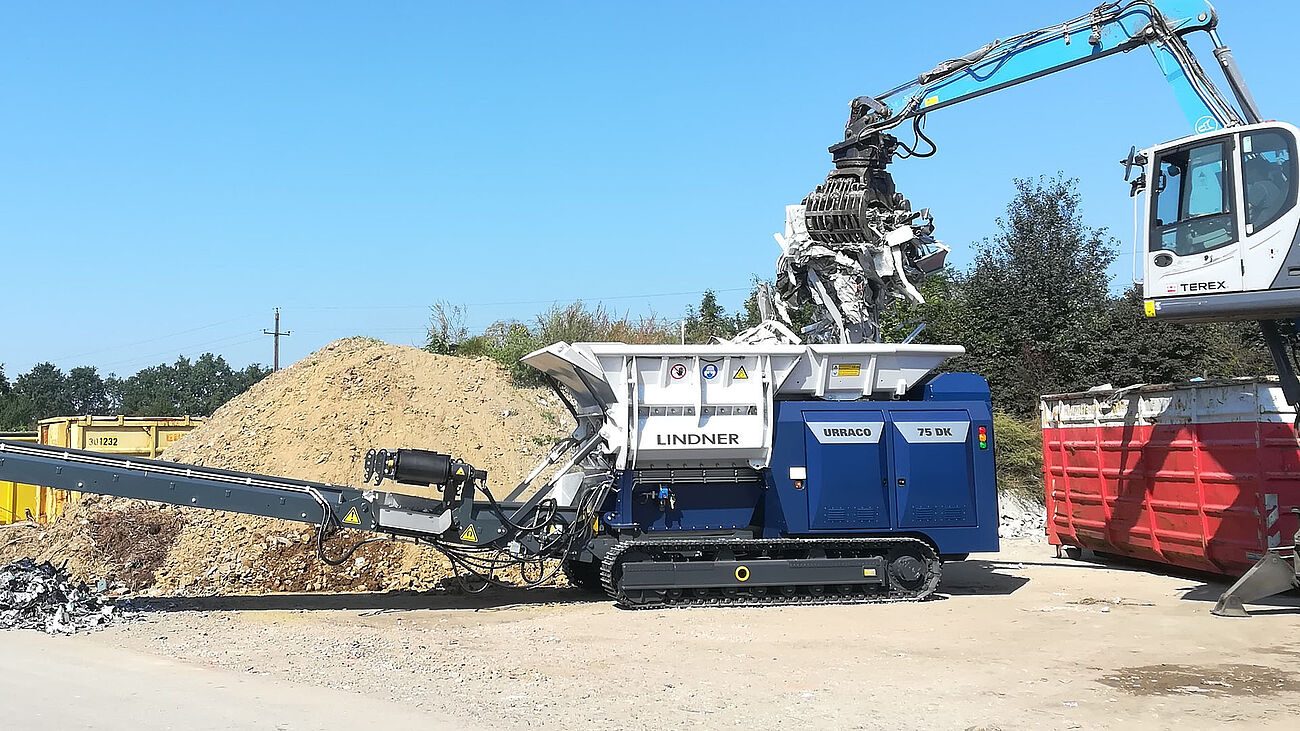

Electric and electronic scrap, aluminium scrap and aluminium housings.

Tyres
Passenger car, truck, and tractor tyres.

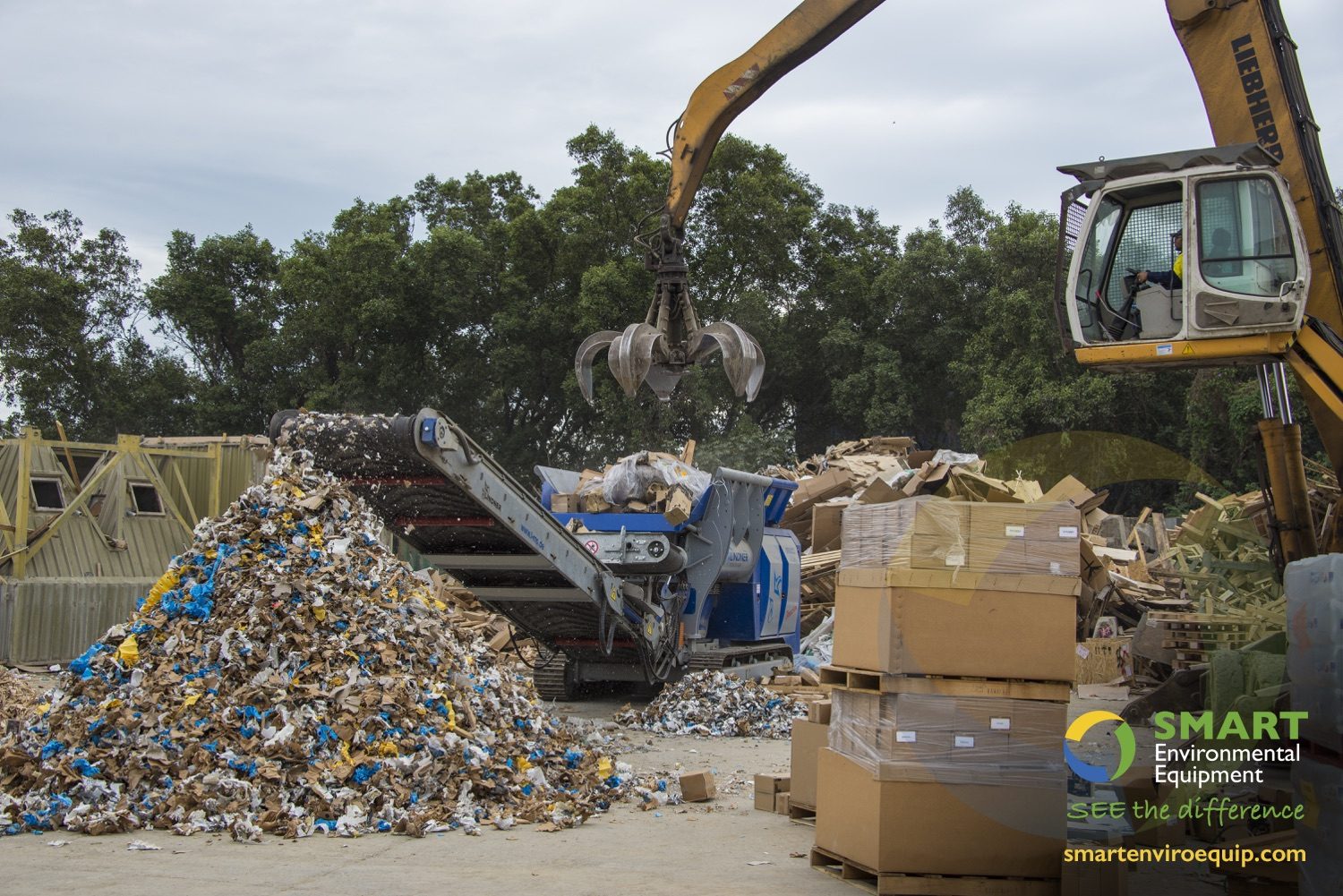

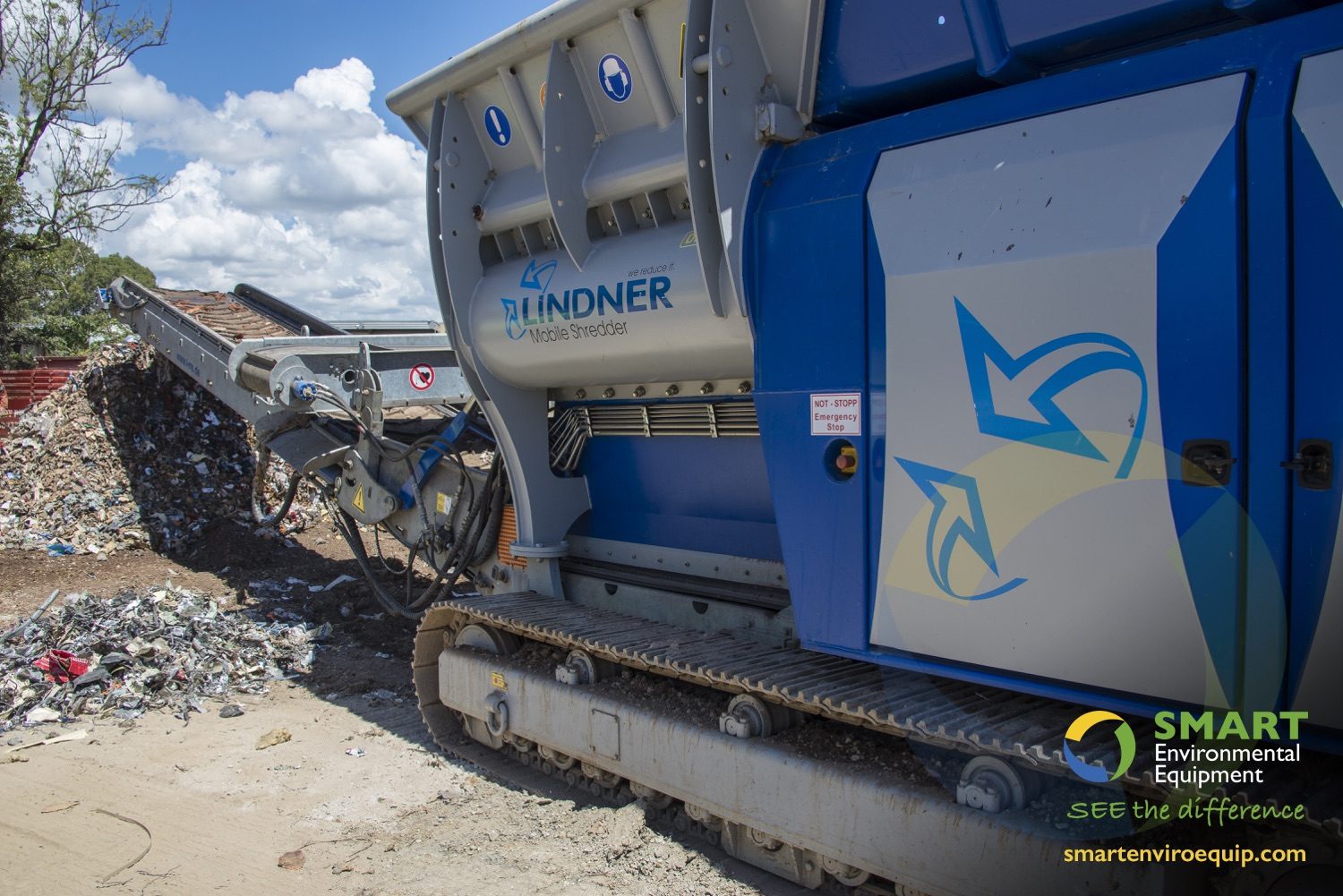

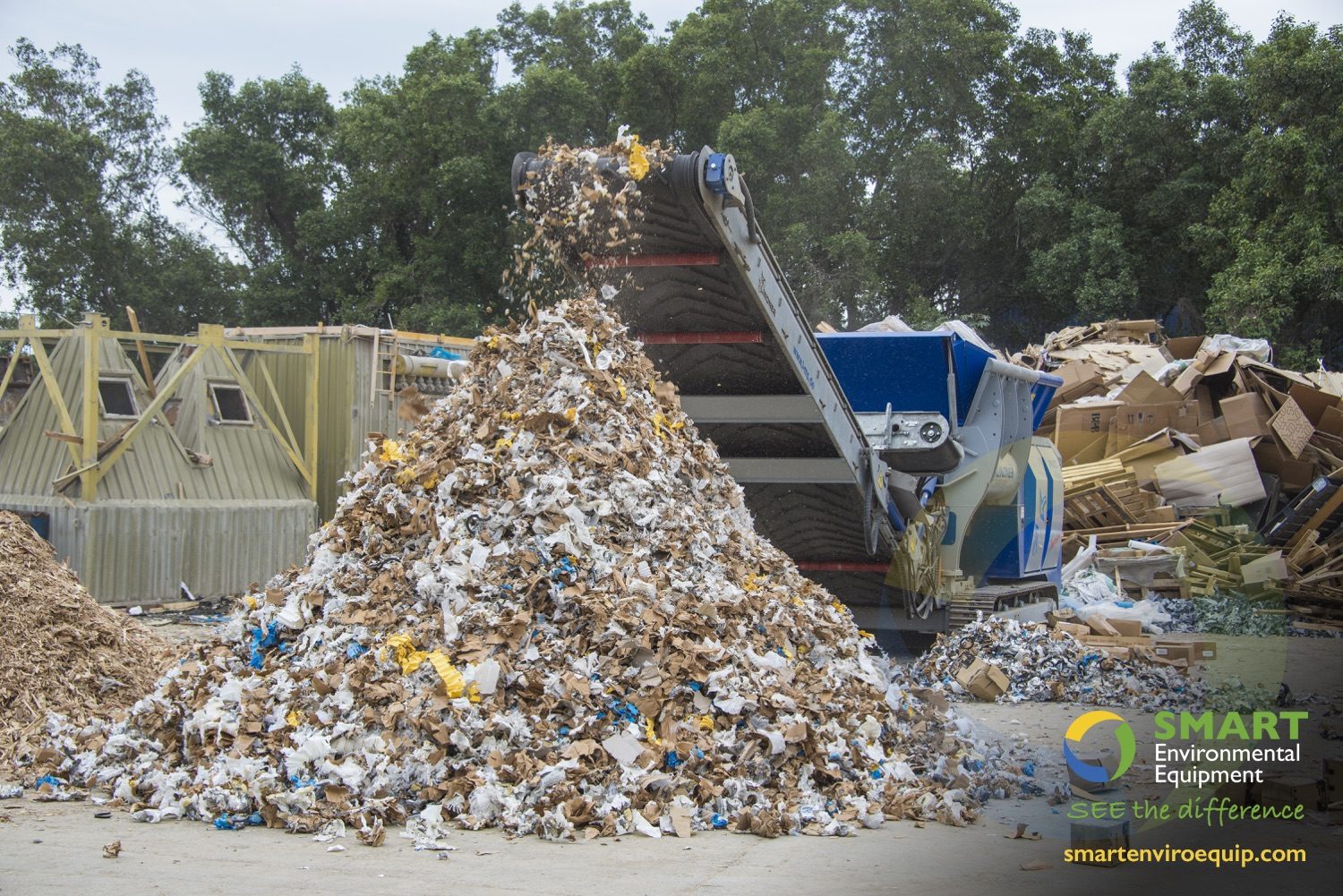

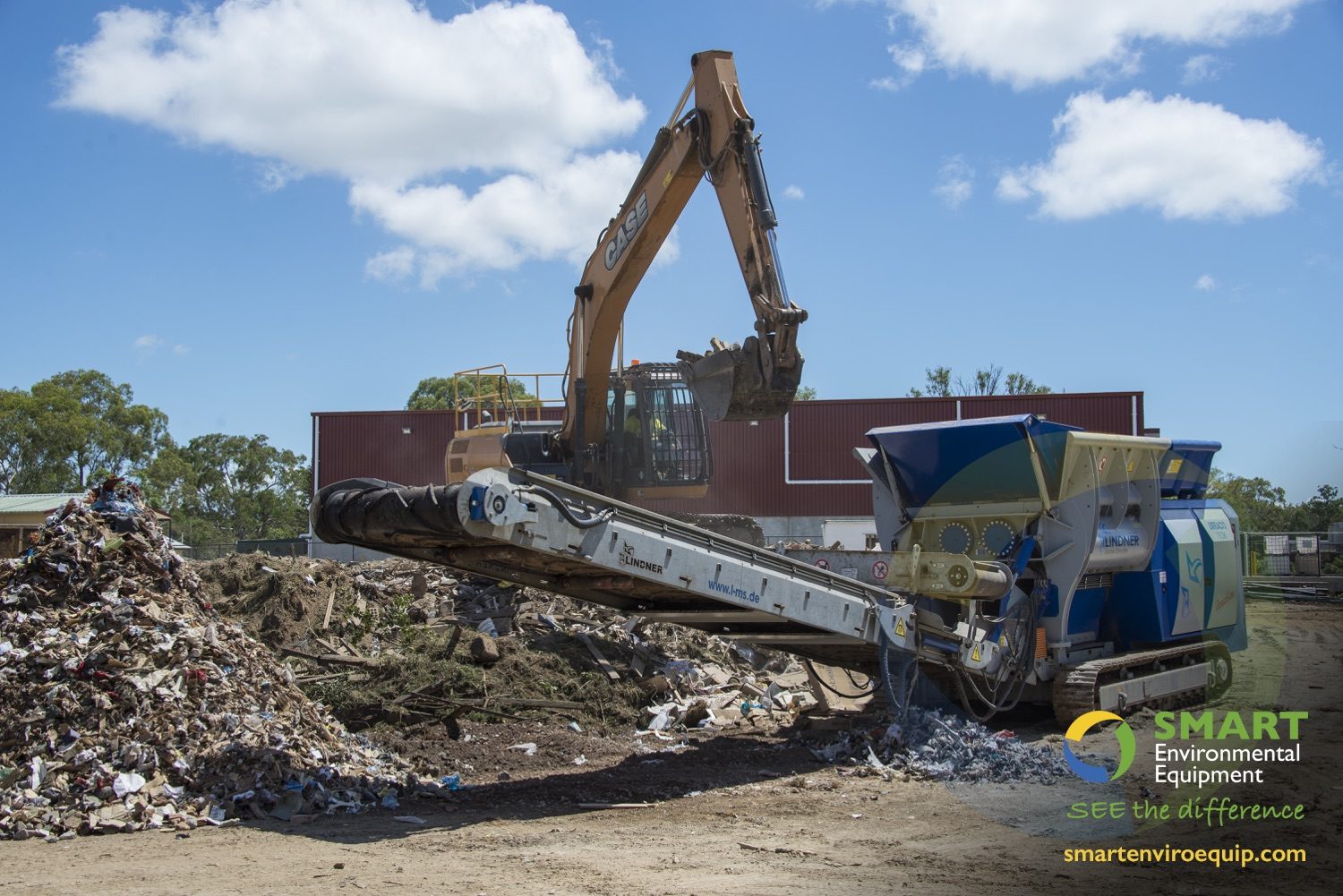

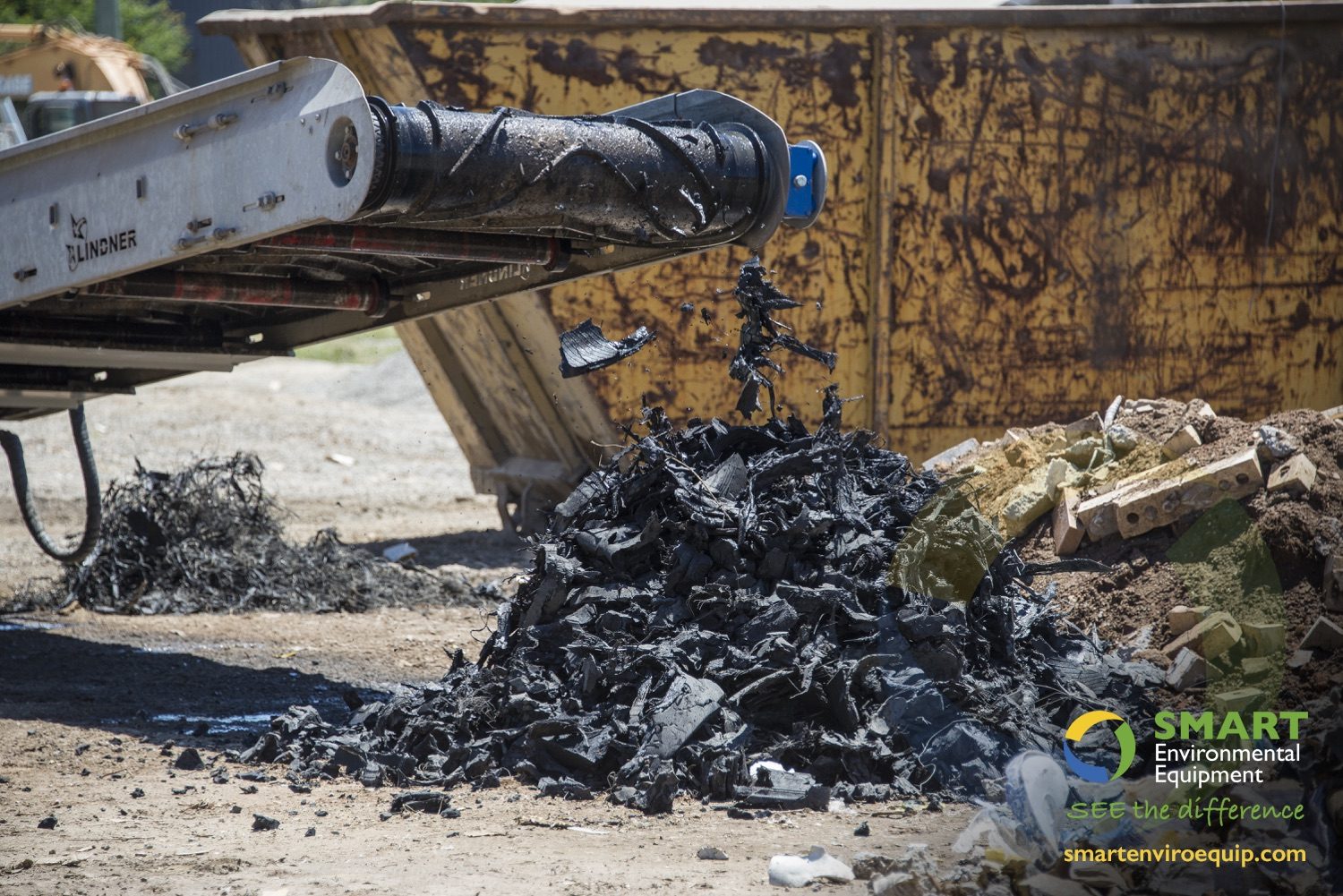

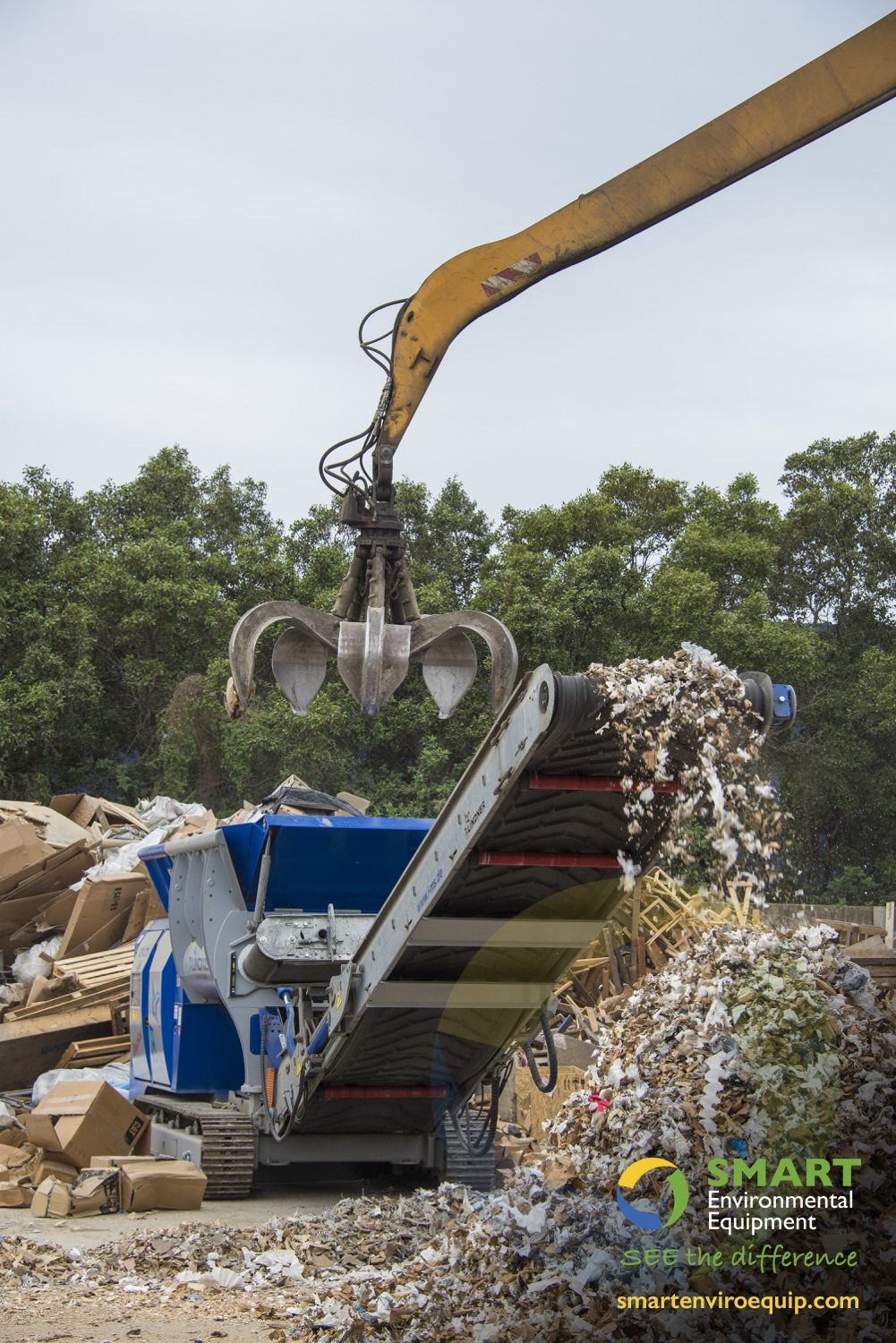

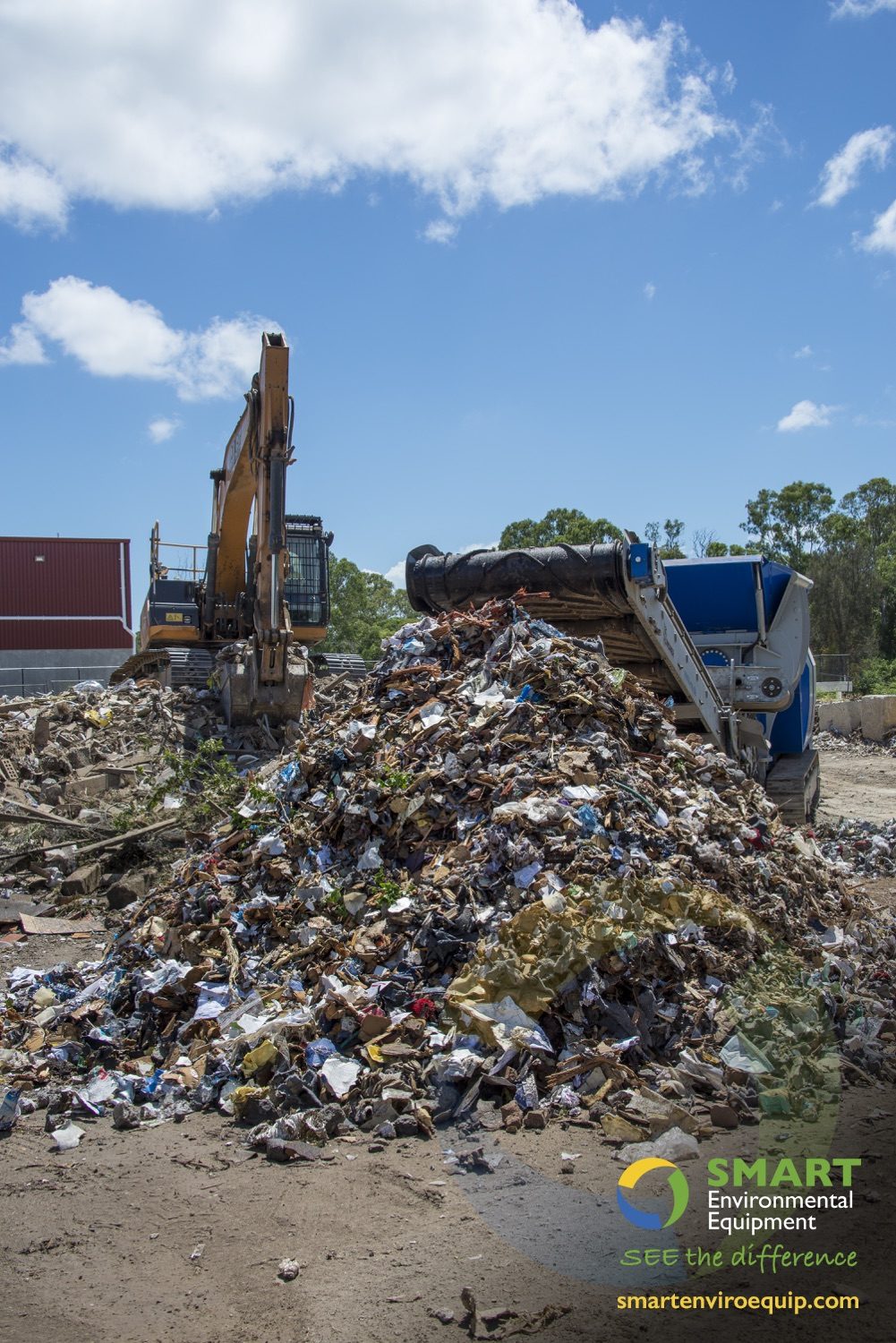

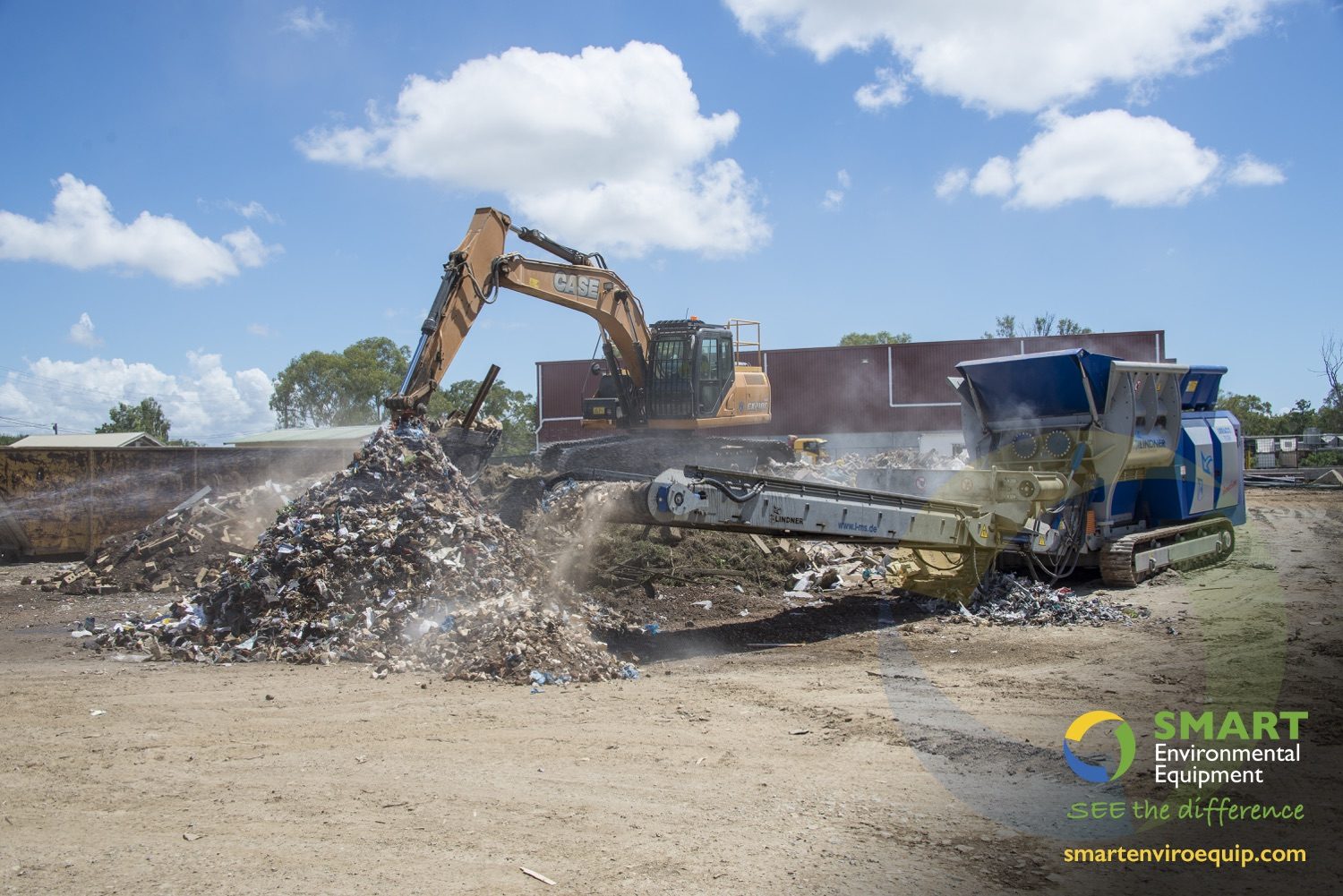

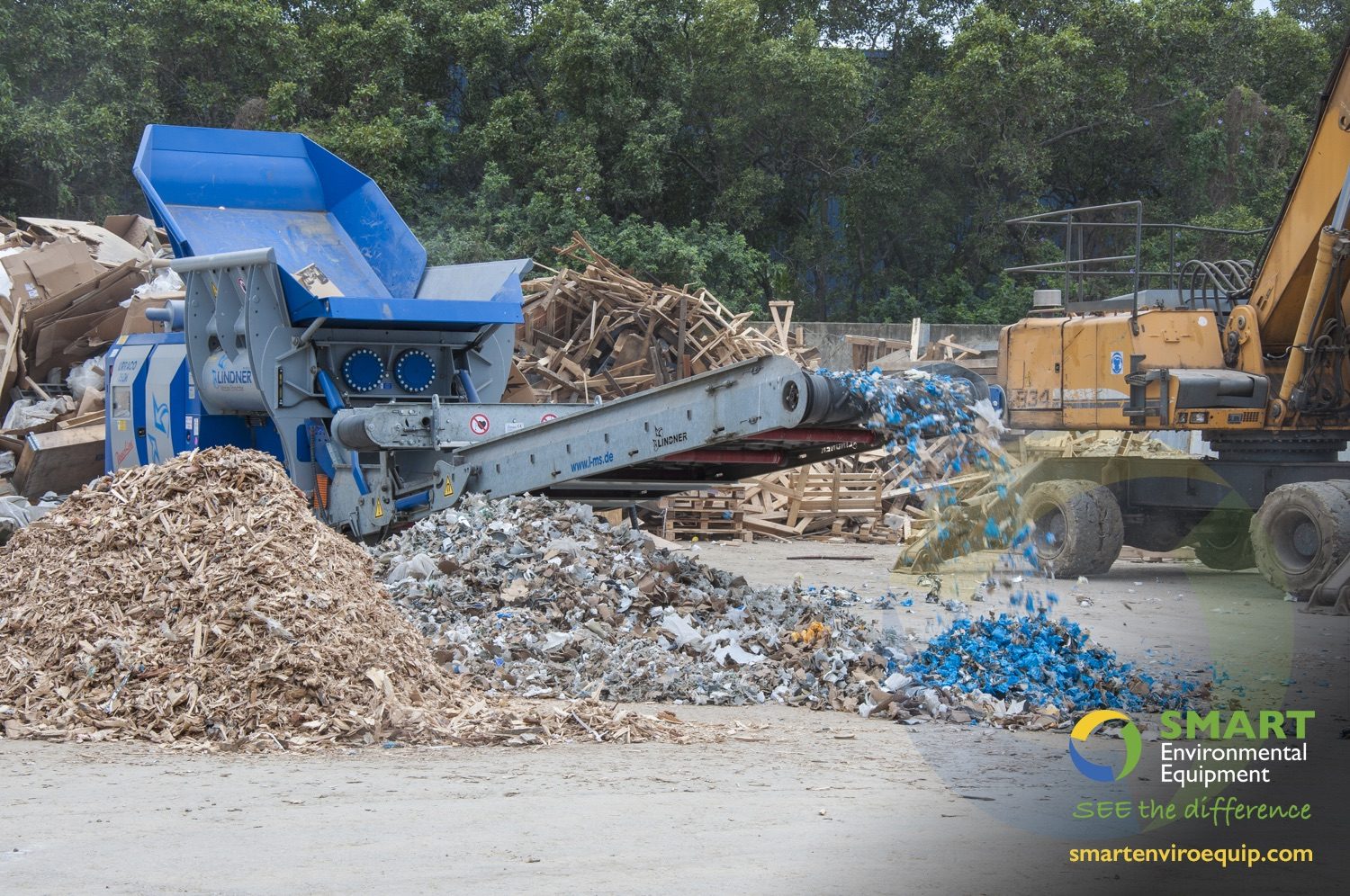

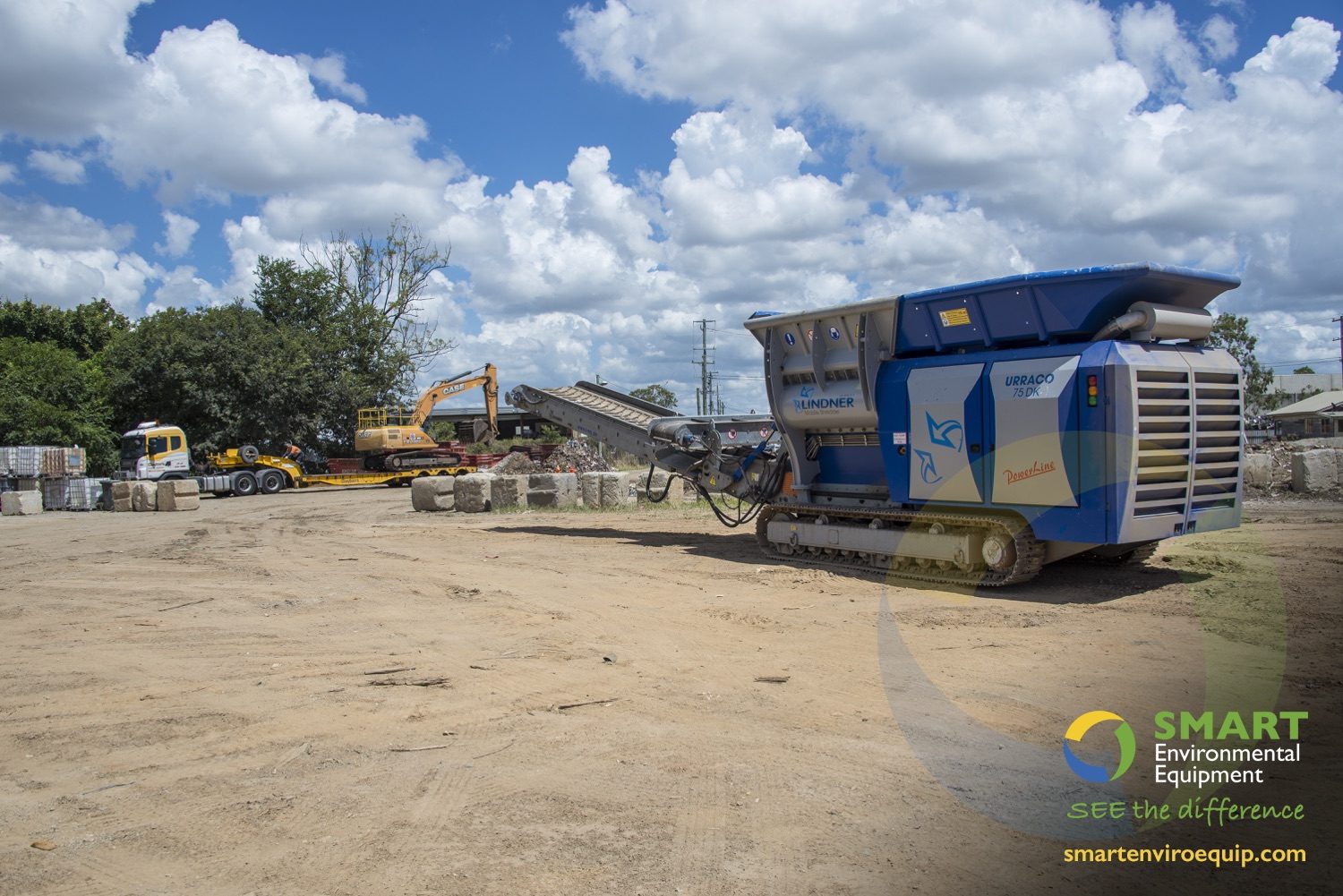

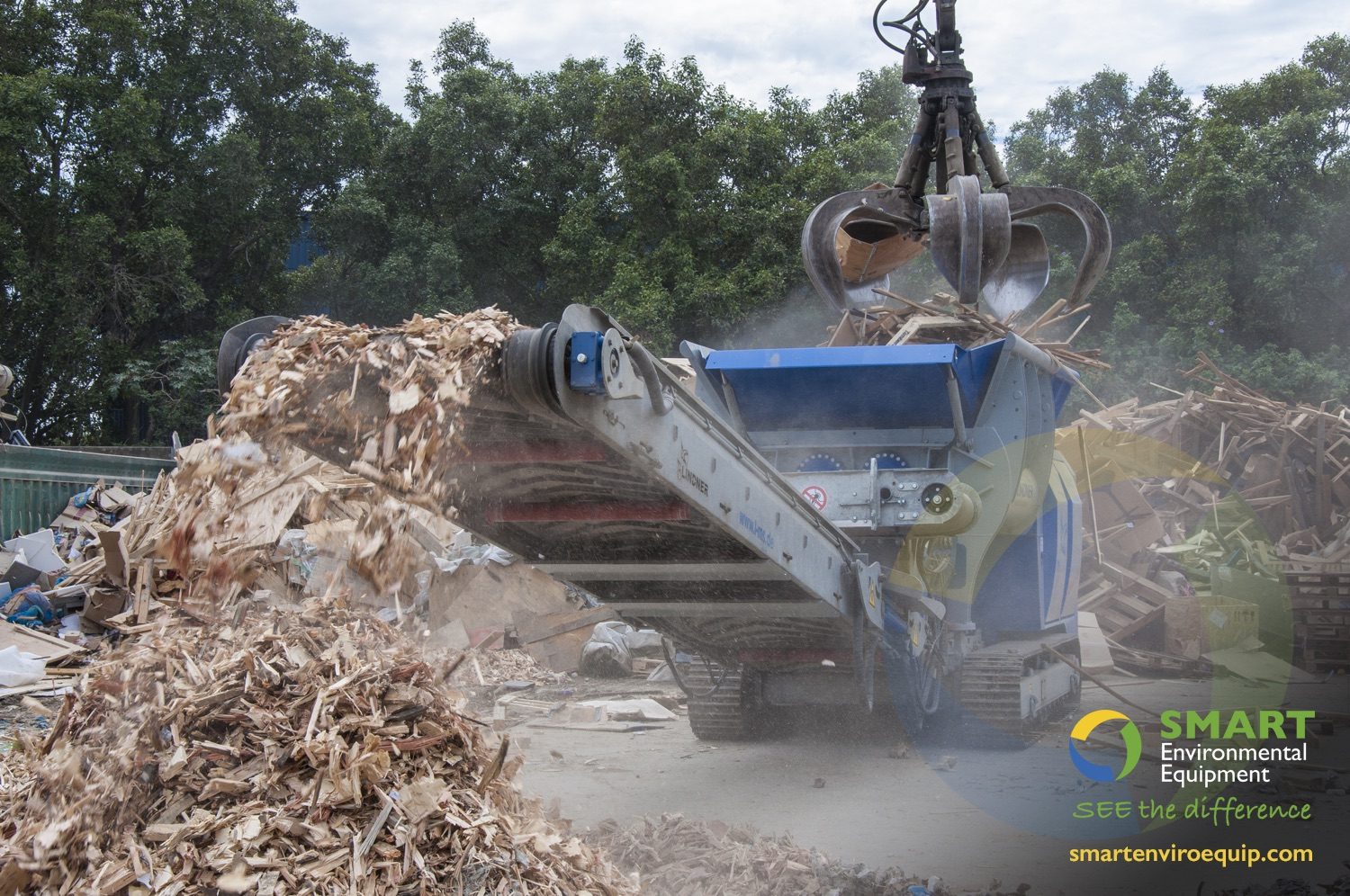

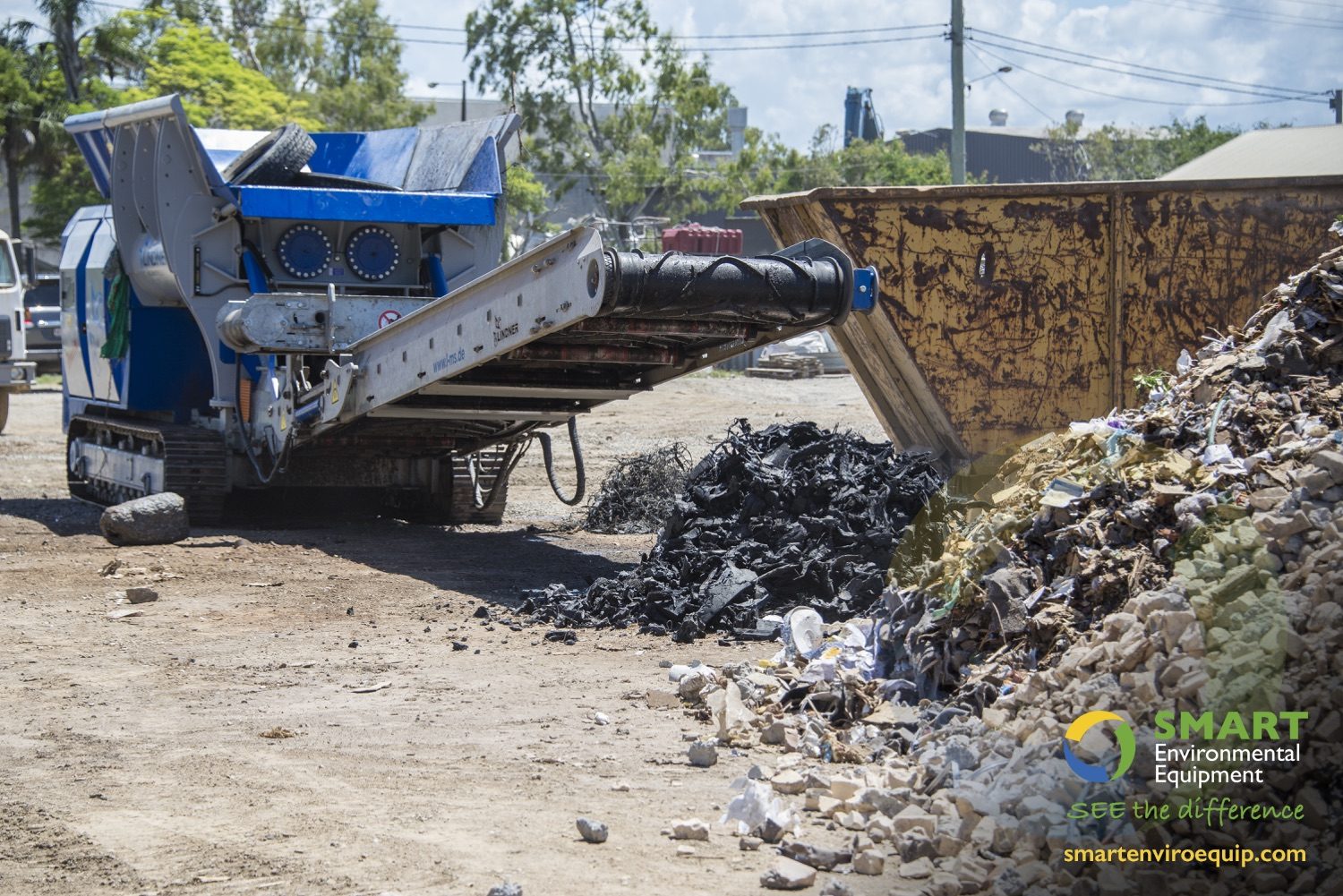

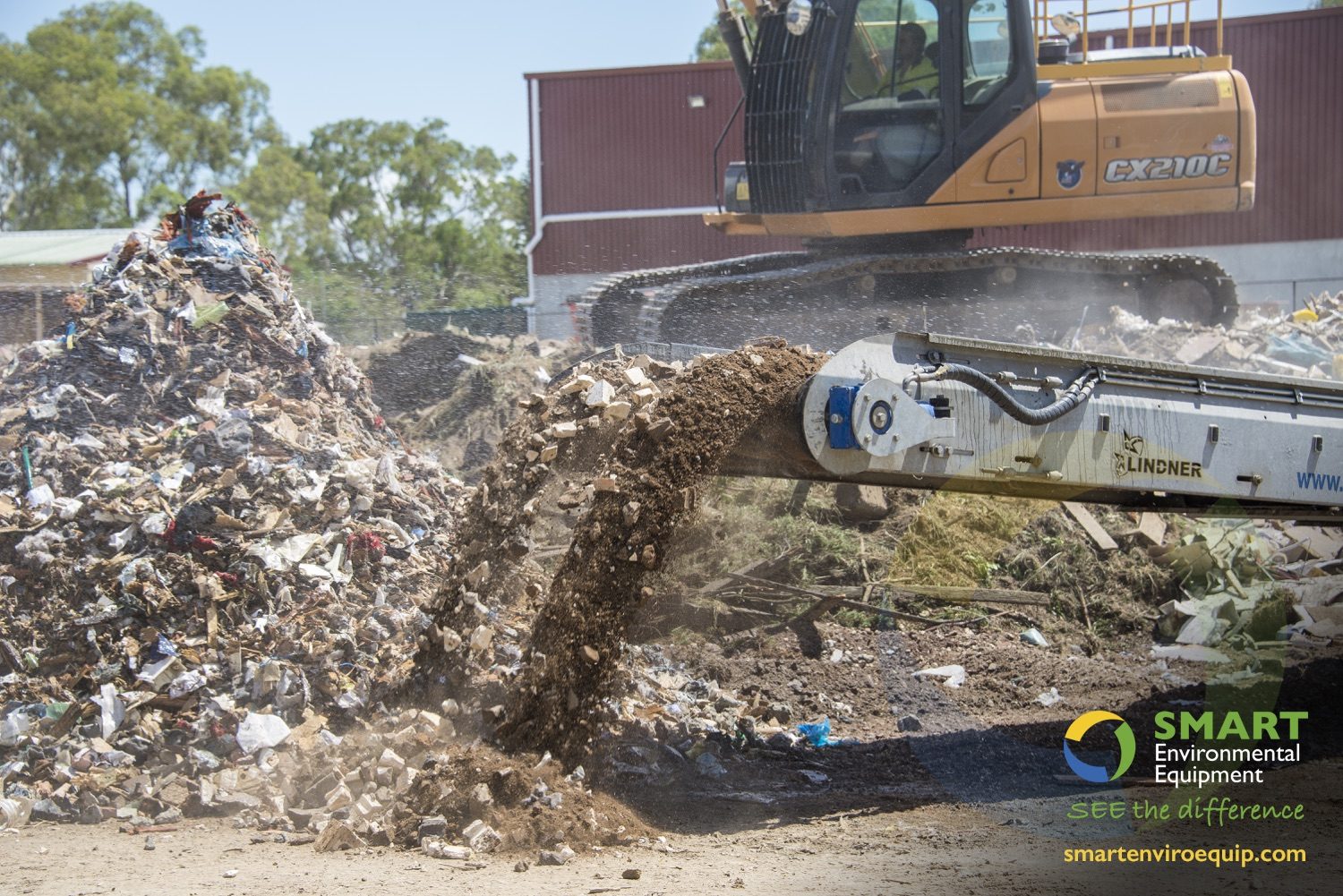

Click on the gallery to view the Lindner Urraco 75 DK in action:

75 DK Technical Data

Diesel drive power	257kW
Exhaust gas standard	EU Stage V / US Tier 4f / EU Stage IIIA
Mobility	Tracked chassis
Shaft length	2x 1500
Weight	22t
Dimensions (LxWxH)	7000mm x 2500mm x 2800mm
Discharge height, conveyor 30°	4600mm
